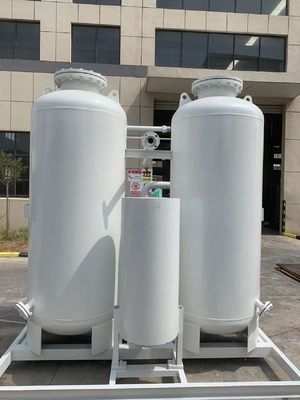

99.95 Laboratory Nitrogen Generator N2 Pressure Swing Absorption Plants

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Liquid Nitrogen Generator | Usage | Liquid Nitrogen |
---|---|---|---|
Dimension(L*W*H) | 1500*1000*1200mm | Warranty Of Core Components | 1 Year |
Application | Laboratory And Medical | Purity | 95%-99.999% |
High Light | 99.95 Laboratory Nitrogen Generator,N2 Pressure Swing Absorption Plants,99.95 Pressure Swing Absorption Plants |
Processing Pressure Swing Adsorption Nitrogen Generator Nitrogen Purification
Features
1. The machine runs automatically and nobody is on duty.
2. Less land occupation, low height (maximum Height≤2500mm)
3. Quick speed of liquid nitrogen output: It only takes 1.5 hours from start-up to liquid nitrogen output.
4. Mature technology ,Safe and reliable operation and easy maintenance.
With ordinary refrigerator compressors on the market, people who can repair refrigerators will ba able to repair it.
Application
1. Application of liquid nitrogen in animal husbandry.It is widely used in the improvement of livestock freezing matching technology and embryo transfer of livestock and many kinds of animals to prepare living embryos.
2. Liquid nitrogen in medical miracle application.Cryogenics, clinical medicine.Liquid nitrogen is the most widely used refrigerant in cryosurgery.It's one of the best refrigerants ever invented. You put it in a cryogenic machine. It's like a scalpel.
3. Application of liquid nitrogen in food industry.The application of liquid nitrogen in food quick-freezing has a fast freezing rate (about 30-40 times faster than the usual freezing method).
4. Application of liquid nitrogen in the electronic industry.Superconductivity skills, electronic components manufacturing and testing, low temperature ball grinding skills, green cutting skills and so on.
5. Other applications of liquid nitrogen.Application in HTS power cable development;It is used to freeze the liquid pipeline in emergency maintenance.Low temperature stabilization and quenching of materials;Liquid nitrogen cooler skills and so on.
Technical parameters of nitrogen generator | |||||||||||
carbon molecular sieve capacity(KG) |
purity/nitrogen capacity(Nm³/h) Low purity |
purity/nitrogen capacity(Nm3/h) high purity |
|||||||||
95% | 96% | 97% | 98% | 99% | 99.5% | 99.9% | 99.95% | 99.99% | 99.995% | 99.999% | |
120 | 55 | 50 | 45 | 40 | 30 | 30 | 20 | 20 | 15 | 13 | 10 |
150 | 75 | 70 | 65 | 50 | 45 | 35 | 25 | 25 | 20 | 15 | 13 |
180 | 80 | 80 | 70 | 60 | 50 | 40 | 30 | 30 | 22 | 20 | 15 |
210 | 105 | 100 | 90 | 80 | 65 | 50 | 35 | 35 | 25 | 25 | 18 |
240 | 115 | 110 | 100 | 90 | 70 | 60 | 40 | 40 | 30 | 27 | 20 |
276 | 130 | 120 | 110 | 100 | 80 | 70 | 45 | 45 | 35 | 30 | 23 |
300 | 150 | 140 | 130 | 110 | 90 | 80 | 50 | 50 | 40 | 35 | 25 |
336 | 170 | 160 | 140 | 120 | 100 | 85 | 60 | 60 | 45 | 40 | 28 |
360 | 180 | 170 | 150 | 130 | 110 | 90 | 65 | 65 | 48 | 42 | 30 |
420 | 200 | 190 | 170 | 150 | 120 | 100 | 70 | 70 | 50 | 45 | 35 |
444 | 210 | 200 | 180 | 160 | 130 | 110 | 75 | 75 | 55 | 50 | 37 |
480 | 230 | 220 | 200 | 170 | 140 | 120 | 80 | 80 | 60 | 55 | 40 |
516 | 250 | 230 | 210 | 180 | 150 | 130 | 85 | 85 | 65 | 55 | 43 |
540 | 270 | 260 | 230 | 200 | 160 | 140 | 90 | 90 | 70 | 60 | 45 |
600 | 290 | 270 | 240 | 220 | 170 | 150 | 100 | 100 | 75 | 65 | 50 |
624 | 300 | 280 | 250 | 230 | 180 | 160 | 105 | 105 | 80 | 70 | 52 |
660 | 330 | 310 | 280 | 250 | 200 | 170 | 110 | 110 | 85 | 75 | 55 |
720 | 360 | 350 | 320 | 280 | 220 | 190 | 120 | 120 | 90 | 80 | 60 |
840 | 390 | 370 | 330 | 300 | 250 | 200 | 130 | 140 | 100 | 90 | 70 |
900 | 430 | 400 | 360 | 320 | 260 | 220 | 150 | 150 | 110 | 100 | 75 |
960 | 460 | 440 | 400 | 350 | 280 | 240 | 160 | 160 | 120 | 110 | 80 |
1020 | 480 | 460 | 410 | 370 | 290 | 250 | 170 | 170 | 125 | 115 | 85 |
1080 | 500 | 470 | 420 | 380 | 300 | 260 | 180 | 180 | 130 | 120 | 90 |
1200 | 550 | 520 | 470 | 400 | 330 | 280 | 190 | 190 | 140 | 130 | 100 |
1250 | 600 | 550 | 500 | 450 | 360 | 300 | 200 | 200 | 150 | 140 | 105 |
1300 | 630 | 600 | 540 | 480 | 390 | 320 | 220 | 220 | 160 | 150 | 110 |
1350 | 650 | 620 | 550 | 490 | 400 | 330 | 230 | 230 | 170 | 150 | 115 |
1400 | 670 | 630 | 570 | 500 | 410 | 350 | 250 | 250 | 180 | 160 | 120 |
1500 | 720 | 680 | 600 | 550 | 440 | 380 | 270 | 260 | 190 | 170 | 130 |
1550 | 760 | 720 | 650 | 580 | 460 | 400 | 280 | 270 | 200 | 180 | 135 |
1600 | 770 | 730 | 680 | 600 | 480 | 430 | 290 | 280 | 210 | 190 | 140 |
1700 | 850 | 800 | 720 | 650 | 520 | 450 | 300 | 300 | 220 | 200 | 150 |
1800 | 930 | 880 | 780 | 700 | 560 | 480 | 350 | 330 | 240 | 210 | 160 |
1900 | 950 | 900 | 800 | 730 | 580 | 500 | 370 | 350 | 250 | 220 | 170 |
2000 | 1000 | 950 | 850 | 750 | 620 | 550 | 400 | 370 | 270 | 230 | 180 |
2100 | 1100 | 1000 | 900 | 800 | 650 | 580 | 420 | 400 | 280 | 250 | 190 |
2200 | 1150 | 1050 | 950 | 850 | 700 | 6do² | 430 | 420 | 300 | 260 | 200 |
2300 | 1200 | 1100 | 1000 | 900 | 750 | 650 | 450 | 450 | 320 | 270 | 210 |
