Gas Station Liquid Nitrogen Generator 3000Nm3/H Oxygen Nitrogen Generator

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Name | Liquid Nitrogen Generator | Voltage | 220v/380v |
---|---|---|---|
Capacity | 5-3000Nm3/h | Dew Point | ≤-40℃ |
Core Components | PLC | Dimension(L*W*H) | Actual Size |
High Light | Gas Station Liquid Nitrogen Generator,3000Nm3/H Oxygen Nitrogen Generator,Liquid Nitrogen Generator 3000Nm3/H |
Product Description

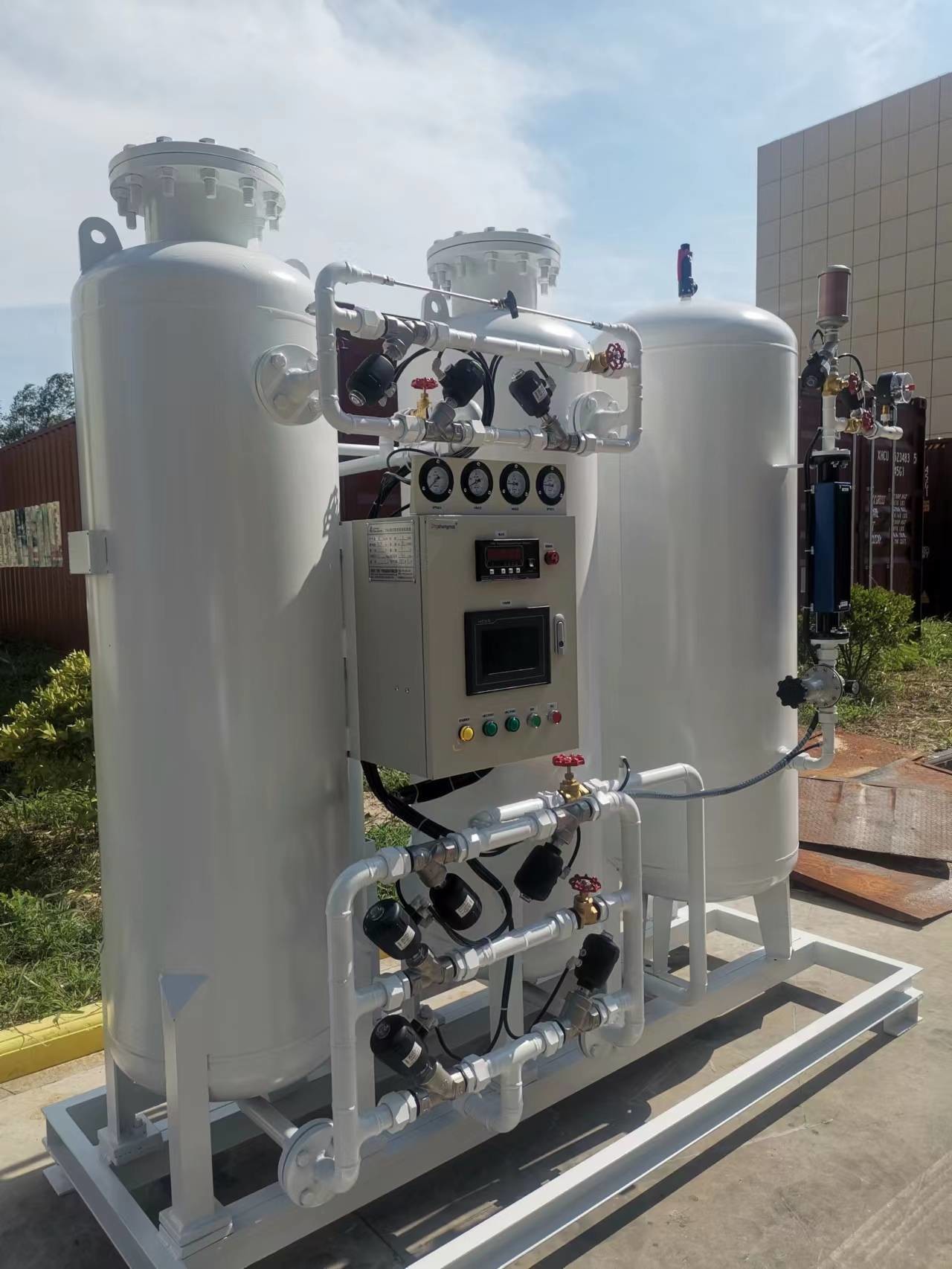

N2 Nitrogen Oxygen Plant For Gas Station Liquid Nitrogen Generator
Principle of Operation
The oxygen and nitrogen generators are constructed according to the principle of operation P.S.A. (Pressure Swing Adsorption) and
are composed by a minimum of two absorbers filled up with molecular sieve.The absorbers are crossed alternatively by the
compressed air (previously purified in order to eliminate oil, humidity and powders) and produce nitrogen or oxygen. While a
container, crossed by the compressed air, produces gas, the other regenerates itself losing to pressure atmosphere the gases
previously adsorbed. The process comes repeated in cyclical way. The generators are managed by a PLC.
are composed by a minimum of two absorbers filled up with molecular sieve.The absorbers are crossed alternatively by the
compressed air (previously purified in order to eliminate oil, humidity and powders) and produce nitrogen or oxygen. While a
container, crossed by the compressed air, produces gas, the other regenerates itself losing to pressure atmosphere the gases
previously adsorbed. The process comes repeated in cyclical way. The generators are managed by a PLC.
Technical parameters of nitrogen generator | |||||||||||
carbon molecular sieve capacity(KG) |
purity/nitrogen capacity(Nm³/h) Low purity |
purity/nitrogen capacity(Nm3/h) high purity |
|||||||||
95% | 96% | 97% | 98% | 99% | 99.5% | 99.9% | 99.95% | 99.99% | 99.995% | 99.999% | |
120 | 55 | 50 | 45 | 40 | 30 | 30 | 20 | 20 | 15 | 13 | 10 |
150 | 75 | 70 | 65 | 50 | 45 | 35 | 25 | 25 | 20 | 15 | 13 |
180 | 80 | 80 | 70 | 60 | 50 | 40 | 30 | 30 | 22 | 20 | 15 |
210 | 105 | 100 | 90 | 80 | 65 | 50 | 35 | 35 | 25 | 25 | 18 |
240 | 115 | 110 | 100 | 90 | 70 | 60 | 40 | 40 | 30 | 27 | 20 |
276 | 130 | 120 | 110 | 100 | 80 | 70 | 45 | 45 | 35 | 30 | 23 |
300 | 150 | 140 | 130 | 110 | 90 | 80 | 50 | 50 | 40 | 35 | 25 |
336 | 170 | 160 | 140 | 120 | 100 | 85 | 60 | 60 | 45 | 40 | 28 |
360 | 180 | 170 | 150 | 130 | 110 | 90 | 65 | 65 | 48 | 42 | 30 |
420 | 200 | 190 | 170 | 150 | 120 | 100 | 70 | 70 | 50 | 45 | 35 |
444 | 210 | 200 | 180 | 160 | 130 | 110 | 75 | 75 | 55 | 50 | 37 |
480 | 230 | 220 | 200 | 170 | 140 | 120 | 80 | 80 | 60 | 55 | 40 |
516 | 250 | 230 | 210 | 180 | 150 | 130 | 85 | 85 | 65 | 55 | 43 |
540 | 270 | 260 | 230 | 200 | 160 | 140 | 90 | 90 | 70 | 60 | 45 |
600 | 290 | 270 | 240 | 220 | 170 | 150 | 100 | 100 | 75 | 65 | 50 |
624 | 300 | 280 | 250 | 230 | 180 | 160 | 105 | 105 | 80 | 70 | 52 |
660 | 330 | 310 | 280 | 250 | 200 | 170 | 110 | 110 | 85 | 75 | 55 |
720 | 360 | 350 | 320 | 280 | 220 | 190 | 120 | 120 | 90 | 80 | 60 |
840 | 390 | 370 | 330 | 300 | 250 | 200 | 130 | 140 | 100 | 90 | 70 |
900 | 430 | 400 | 360 | 320 | 260 | 220 | 150 | 150 | 110 | 100 | 75 |
960 | 460 | 440 | 400 | 350 | 280 | 240 | 160 | 160 | 120 | 110 | 80 |
1020 | 480 | 460 | 410 | 370 | 290 | 250 | 170 | 170 | 125 | 115 | 85 |
1080 | 500 | 470 | 420 | 380 | 300 | 260 | 180 | 180 | 130 | 120 | 90 |
1200 | 550 | 520 | 470 | 400 | 330 | 280 | 190 | 190 | 140 | 130 | 100 |
1250 | 600 | 550 | 500 | 450 | 360 | 300 | 200 | 200 | 150 | 140 | 105 |
1300 | 630 | 600 | 540 | 480 | 390 | 320 | 220 | 220 | 160 | 150 | 110 |
1350 | 650 | 620 | 550 | 490 | 400 | 330 | 230 | 230 | 170 | 150 | 115 |
1400 | 670 | 630 | 570 | 500 | 410 | 350 | 250 | 250 | 180 | 160 | 120 |
1500 | 720 | 680 | 600 | 550 | 440 | 380 | 270 | 260 | 190 | 170 | 130 |
1550 | 760 | 720 | 650 | 580 | 460 | 400 | 280 | 270 | 200 | 180 | 135 |
1600 | 770 | 730 | 680 | 600 | 480 | 430 | 290 | 280 | 210 | 190 | 140 |
1700 | 850 | 800 | 720 | 650 | 520 | 450 | 300 | 300 | 220 | 200 | 150 |
1800 | 930 | 880 | 780 | 700 | 560 | 480 | 350 | 330 | 240 | 210 | 160 |
1900 | 950 | 900 | 800 | 730 | 580 | 500 | 370 | 350 | 250 | 220 | 170 |
2000 | 1000 | 950 | 850 | 750 | 620 | 550 | 400 | 370 | 270 | 230 | 180 |
2100 | 1100 | 1000 | 900 | 800 | 650 | 580 | 420 | 400 | 280 | 250 | 190 |
2200 | 1150 | 1050 | 950 | 850 | 700 | 6do² | 430 | 420 | 300 | 260 | 200 |
2300 | 1200 | 1100 | 1000 | 900 | 750 | 650 | 450 | 450 | 320 | 270 | 210 |
