Pure 99.9 Psa Nitrogen Gas Plant Nitrogen Generation System For Cat

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xUsage | Nitrogen | Dimension(l*w*h) | Actual Size |
---|---|---|---|
Condition | New | Technology | PSA System |
Application | Oil/Gas/Chemical/Metallurgy/Food/Coal | Product Name | Nitrogen Generator |
Highlight | Pure 99.9 Psa Nitrogen Gas Plant,99.9 Psa Nitrogen Gas Plant,Nitrogen Generation System For Cat |

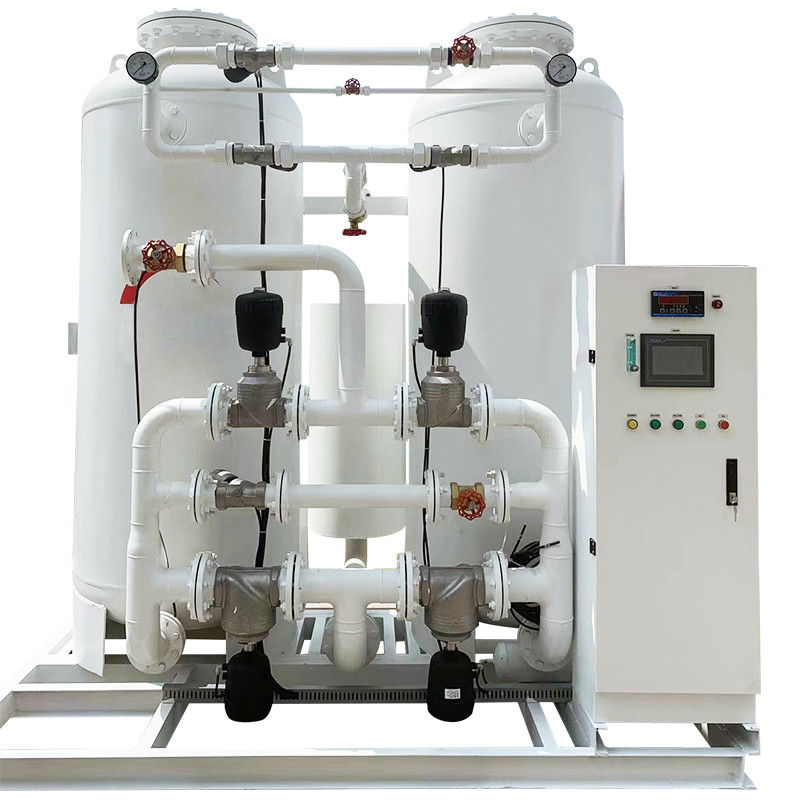

High Purity Pure N2 Gas Portable Generator For Cat With Intelligent Control System
Working principle: According to the principle of variable pressure adsorption, high quality carbon molecular sieve is used as adsorbent to produce nitrogen from air under a certain pressure. After purified and dried compressed air, it is adsorbed under pressure and desorbed under reduced pressure in the adsorber. Due to the aerodynamic effect, the diffusion rate of oxygen in the micro-pores of the carbon molecular sieve is much larger than that of nitrogen, and oxygen is preferentially adsorbed by the carbon molecular sieve, while nitrogen is enriched in the gas phase to form the finished nitrogen gas. Then by reducing the pressure to atmospheric pressure, the adsorbent desorbs the adsorbed oxygen and other impurities, is to achieve regeneration. Generally, two adsorption towers are set up in the system, one tower adsorption nitrogen production, the other tower desorption regeneration, through the PLC program controller to control the start and close the pneumatic valve, so that the two towers alternate cycle, in order to achieve the purpose of continuous production of nitrogen.
Technical parameters of nitrogen generator | |||||||||||
carbon molecular sieve capacity(KG) |
purity/nitrogen capacity(Nm³/h) Low purity |
purity/nitrogen capacity(Nm3/h) high purity |
|||||||||
95% | 96% | 97% | 98% | 99% | 99.5% | 99.9% | 99.95% | 99.99% | 99.995% | 99.999% | |
120 | 55 | 50 | 45 | 40 | 30 | 30 | 20 | 20 | 15 | 13 | 10 |
150 | 75 | 70 | 65 | 50 | 45 | 35 | 25 | 25 | 20 | 15 | 13 |
180 | 80 | 80 | 70 | 60 | 50 | 40 | 30 | 30 | 22 | 20 | 15 |
210 | 105 | 100 | 90 | 80 | 65 | 50 | 35 | 35 | 25 | 25 | 18 |
240 | 115 | 110 | 100 | 90 | 70 | 60 | 40 | 40 | 30 | 27 | 20 |
276 | 130 | 120 | 110 | 100 | 80 | 70 | 45 | 45 | 35 | 30 | 23 |
300 | 150 | 140 | 130 | 110 | 90 | 80 | 50 | 50 | 40 | 35 | 25 |
336 | 170 | 160 | 140 | 120 | 100 | 85 | 60 | 60 | 45 | 40 | 28 |
360 | 180 | 170 | 150 | 130 | 110 | 90 | 65 | 65 | 48 | 42 | 30 |
420 | 200 | 190 | 170 | 150 | 120 | 100 | 70 | 70 | 50 | 45 | 35 |
444 | 210 | 200 | 180 | 160 | 130 | 110 | 75 | 75 | 55 | 50 | 37 |
480 | 230 | 220 | 200 | 170 | 140 | 120 | 80 | 80 | 60 | 55 | 40 |
516 | 250 | 230 | 210 | 180 | 150 | 130 | 85 | 85 | 65 | 55 | 43 |
540 | 270 | 260 | 230 | 200 | 160 | 140 | 90 | 90 | 70 | 60 | 45 |
600 | 290 | 270 | 240 | 220 | 170 | 150 | 100 | 100 | 75 | 65 | 50 |
624 | 300 | 280 | 250 | 230 | 180 | 160 | 105 | 105 | 80 | 70 | 52 |
660 | 330 | 310 | 280 | 250 | 200 | 170 | 110 | 110 | 85 | 75 | 55 |
720 | 360 | 350 | 320 | 280 | 220 | 190 | 120 | 120 | 90 | 80 | 60 |
840 | 390 | 370 | 330 | 300 | 250 | 200 | 130 | 140 | 100 | 90 | 70 |
900 | 430 | 400 | 360 | 320 | 260 | 220 | 150 | 150 | 110 | 100 | 75 |
960 | 460 | 440 | 400 | 350 | 280 | 240 | 160 | 160 | 120 | 110 | 80 |
1020 | 480 | 460 | 410 | 370 | 290 | 250 | 170 | 170 | 125 | 115 | 85 |
1080 | 500 | 470 | 420 | 380 | 300 | 260 | 180 | 180 | 130 | 120 | 90 |
1200 | 550 | 520 | 470 | 400 | 330 | 280 | 190 | 190 | 140 | 130 | 100 |
1250 | 600 | 550 | 500 | 450 | 360 | 300 | 200 | 200 | 150 | 140 | 105 |
1300 | 630 | 600 | 540 | 480 | 390 | 320 | 220 | 220 | 160 | 150 | 110 |
1350 | 650 | 620 | 550 | 490 | 400 | 330 | 230 | 230 | 170 | 150 | 115 |
1400 | 670 | 630 | 570 | 500 | 410 | 350 | 250 | 250 | 180 | 160 | 120 |
1500 | 720 | 680 | 600 | 550 | 440 | 380 | 270 | 260 | 190 | 170 | 130 |
1550 | 760 | 720 | 650 | 580 | 460 | 400 | 280 | 270 | 200 | 180 | 135 |
1600 | 770 | 730 | 680 | 600 | 480 | 430 | 290 | 280 | 210 | 190 | 140 |
1700 | 850 | 800 | 720 | 650 | 520 | 450 | 300 | 300 | 220 | 200 | 150 |
1800 | 930 | 880 | 780 | 700 | 560 | 480 | 350 | 330 | 240 | 210 | 160 |
1900 | 950 | 900 | 800 | 730 | 580 | 500 | 370 | 350 | 250 | 220 | 170 |
2000 | 1000 | 950 | 850 | 750 | 620 | 550 | 400 | 370 | 270 | 230 | 180 |
2100 | 1100 | 1000 | 900 | 800 | 650 | 580 | 420 | 400 | 280 | 250 | 190 |
2200 | 1150 | 1050 | 950 | 850 | 700 | 6do² | 430 | 420 | 300 | 260 | 200 |
2300 | 1200 | 1100 | 1000 | 900 | 750 | 650 | 450 | 450 | 320 | 270 | 210 |
