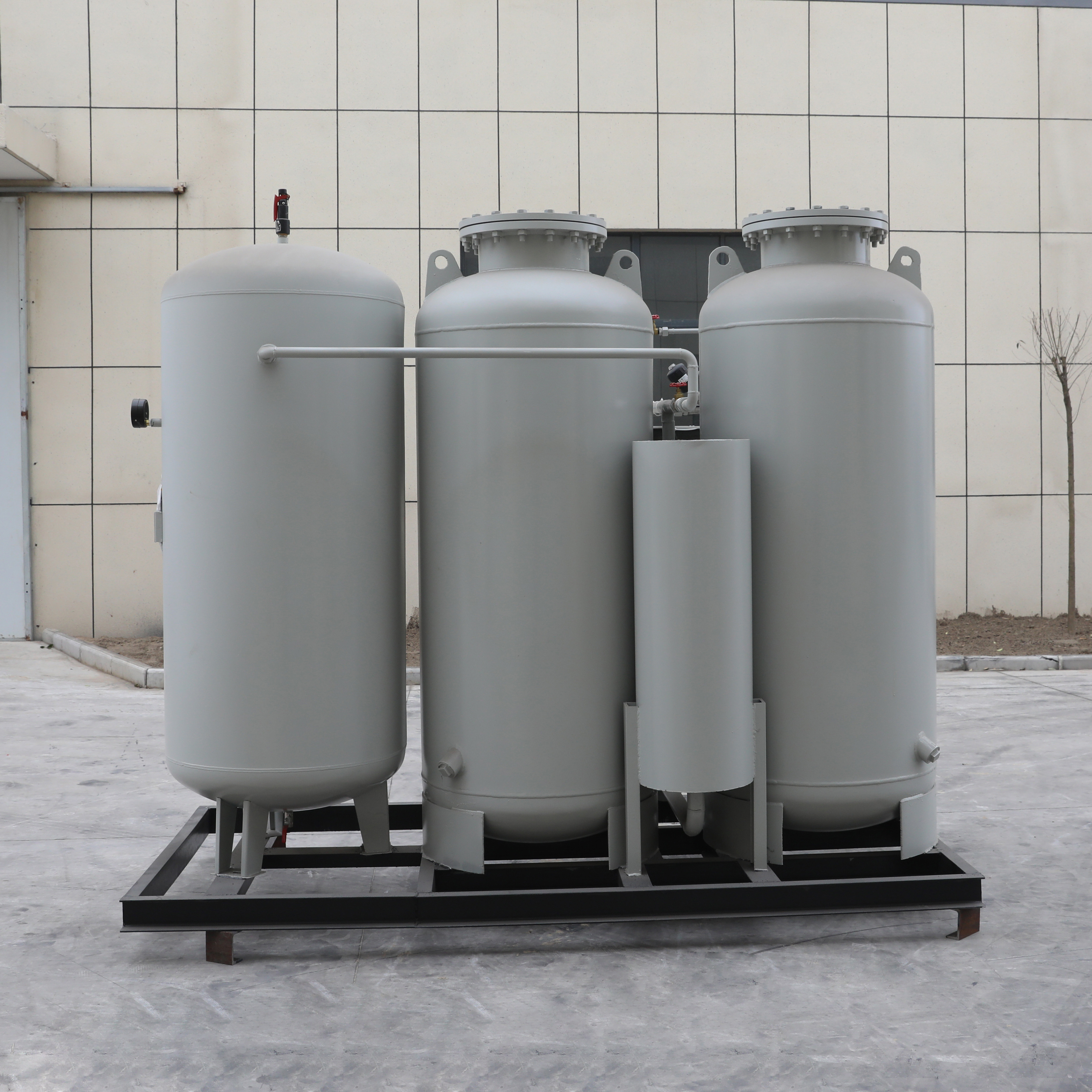

10Nm3/H Oxygen Generator System 96% Pure Oxygen PSA Unit

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Oxygen Generator System | Oxygen Purity | 93%±2% |
---|---|---|---|
Dew Point | ≤-40℃ | Extract Gas State | Gaseous State |
Principle | Compression | Oxygen Pressure | 0-0.5Mpa |
Customized Service | Yes | Voltage Frequency | 380V220V50HZ |
High Light | 10Nm3/H Oxygen Generator System,96% Pure Oxygen PSA Unit,Oxygen Generator System 96% Pure |
PSA Nitrogen Generator Industrial Nitrogen Generator Oxygen Generator System
Oxygen Generator System
1. Molecular sieve filling adopts the "blizzard" method, and no addition is required for one-time filling;
2. Quick start - cold/hot start function;
3. Various parameters are displayed online, and the data port is reserved;
4. Multi-functional comprehensive alarm (purity, pressure, etc.);
5. Cut off/empty unqualified products (specified by the user);
6. Emergency stop control. Intelligent control configuration:
7. All the functions of the standard function configuration;
8. PC function - in the Windows-based operating platform, basic PC operation can be realized;
9. Touch screen dynamic display and storage;
10. Analog paperless recorder;
Model | Oxygen flow(Nm3/h) | Oxygen purity(%) | Overall dimension (mm) |
JFO-3 | 3 | 93-96 | 1200x1200x1800 |
JFO-5 | 5 | 93-96 | 1200×1200×20000 |
JFO-10 | 10 | 93-96 | 1600x1500×2150 |
JFO-20 | 20 | 93-96 | 1800x1700x2550 |
JFO-30 | 30 | 93-96 | 1900x1700x2600 |
JFO-50 | 50 | 93-96 | 2100×2000x2750 |
JFO-100 | 100 | 93-96 | 5500x1550x3200 |
JFO-150 | 150 | 93-96 | 6000×1800×3500 |
JFO-200 | 200 | 93-96 | 6600×2000x3700 |
