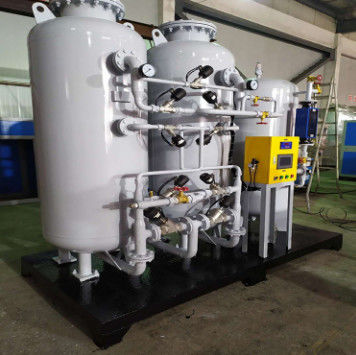

220V 380V Mobile Nitrogen Generator 99.5% N2 Generation Plant

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDimension(l*w*h) | 660*600*1900~3700*2500*3600 | After-sales Service Provided | Video Technical Support |
---|---|---|---|
Voltage | 220V/380V/Customised | Weight | Actual Weight) |
Name | Nitrogen Generator | ||
High Light | 380V Mobile Nitrogen Generator,220V Mobile Nitrogen Generator,99.5% N2 Generation Plant |
High Purity Psa Nitrogen Generator N2 Air Separation Mobile Nitrogen Generator N2 Plant
PSA technique (Pressure Swing Adsorption, PSA for short):it's a kind of advanced gas separation technology, based on physical adsorption of gas molecule on the internal surface of adsorbent (porous solid substances), using adsorbents in the same pressure easy to absorb the high boiling point gas, difficult to absorb low boiling point gas, and under high pressure adsorption amount of absorbed gas increases, under low pressure adsorption of absorbed gas to reduce the features to achieve gas separation. This process under pressure adsorption of impurities, under reduced pressure adsorption of impurities, make the adsorbent regeneration, is the PSA cycle.
Technical parameters of nitrogen generator | |||||||||||
carbon molecular sieve capacity(KG) |
purity/nitrogen capacity(Nm³/h) Low purity |
purity/nitrogen capacity(Nm3/h) high purity |
|||||||||
95% | 96% | 97% | 98% | 99% | 99.5% | 99.9% | 99.95% | 99.99% | 99.995% | 99.999% | |
120 | 55 | 50 | 45 | 40 | 30 | 30 | 20 | 20 | 15 | 13 | 10 |
150 | 75 | 70 | 65 | 50 | 45 | 35 | 25 | 25 | 20 | 15 | 13 |
180 | 80 | 80 | 70 | 60 | 50 | 40 | 30 | 30 | 22 | 20 | 15 |
210 | 105 | 100 | 90 | 80 | 65 | 50 | 35 | 35 | 25 | 25 | 18 |
240 | 115 | 110 | 100 | 90 | 70 | 60 | 40 | 40 | 30 | 27 | 20 |
276 | 130 | 120 | 110 | 100 | 80 | 70 | 45 | 45 | 35 | 30 | 23 |
300 | 150 | 140 | 130 | 110 | 90 | 80 | 50 | 50 | 40 | 35 | 25 |
336 | 170 | 160 | 140 | 120 | 100 | 85 | 60 | 60 | 45 | 40 | 28 |
360 | 180 | 170 | 150 | 130 | 110 | 90 | 65 | 65 | 48 | 42 | 30 |
420 | 200 | 190 | 170 | 150 | 120 | 100 | 70 | 70 | 50 | 45 | 35 |
