PSA Modular Oxygen Generation System 1.0Mpa Oxygen Generator Equipment

  • PSA Modular Oxygen Generation System 1.0Mpa Oxygen Generator Equipment
Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Modular Oxygen Generator Color White/Customized Color
After-sales Service Provided Video Technical Support Online Support Purity 93+/-2/3%
Advantage Easy Operation Pressure 0.1~1.0Mpa (adjustable)
High Light

PSA Modular Oxygen Generation System

,

1.0Mpa Oxygen Generator Equipment

,

Oxygen Generation System 1.0Mpa
Leave a Message
Product Description

PSA Modular Oxygen Generation System Oxygen Generator Equipment



Technical parameters of oxygen generator
Product
number		 Gas
production
m³/h		 Oxygen
concentration
/%		 Oxygen
pressure
/Mpa		 Power 220V
Power/Kw		 Host weight/kg Dimensions/mm Air loss factor Number of bottles per day
40L/120-150kg
3 3 93±3 0.4±0.1 0.2 600 1500*900*1500 13.5 12-15
5 5 93±3 0.4±0.1 0.2 900 1600*900*1500 13.5 20-24
10 10 93±3 0.4±0.1 0.2 1200 1600*900*1900 13.5 40-48
20 20 93±3 0.4±0.1 0.2 1500 1900*1000*2180 13.5 80-96
30 30 93±3 0.4±0.1 0.2 2000 2000*1100*2180 13.5 120-154
40 40 93±3 0.4±0.1 0.2 2500 2600*1200*2300 13.5 160-192
50 50 93±3 0.4±0.1 0.5 2800 1800*1500*2400+800 13.5 200-240
60 60 93±3 0.4±0.1 0.5 3200 1800*1500*2600+800 13.5 240-300
70 70 93±3 0.4±0.1 0.5 3500 1800*1600*2800+800 13.5 280-350
80 80 93±3 0.4±0.1 0.5 4000 1800*1600*2900+1000 13.5 320-394
90 90 93±3 0.4±0.1 0.5 4800 2000*1600*2800+1000 13.5 360-432
100 100 93±3 0.4±0.1 0.5 5800 2200*1600*2900+1000 13.5 400-480
120 120 93±3 0.4±0.1 0.5 6500 2400*1600*3100+1000 13.5 480-576
150 150 93±3 0.4±0.1 0.5 8000 2600*1600*3100+1000 13.5 576-720
180 180 93±3 0.4±0.1 0.5 9500 2700*1600*3200+1000 13.5 720-900
200 200 93±3 0.4±0.1 0.5 10500 2800*1600*3200+1000 13.5 900-1000



The Structure is simple for PSA Oxygen Generator with advanced technology. It is more reliable, safer and automatic compared with

Cryogenic technology to liquid oxygen and high-pressure bottled oxygen.

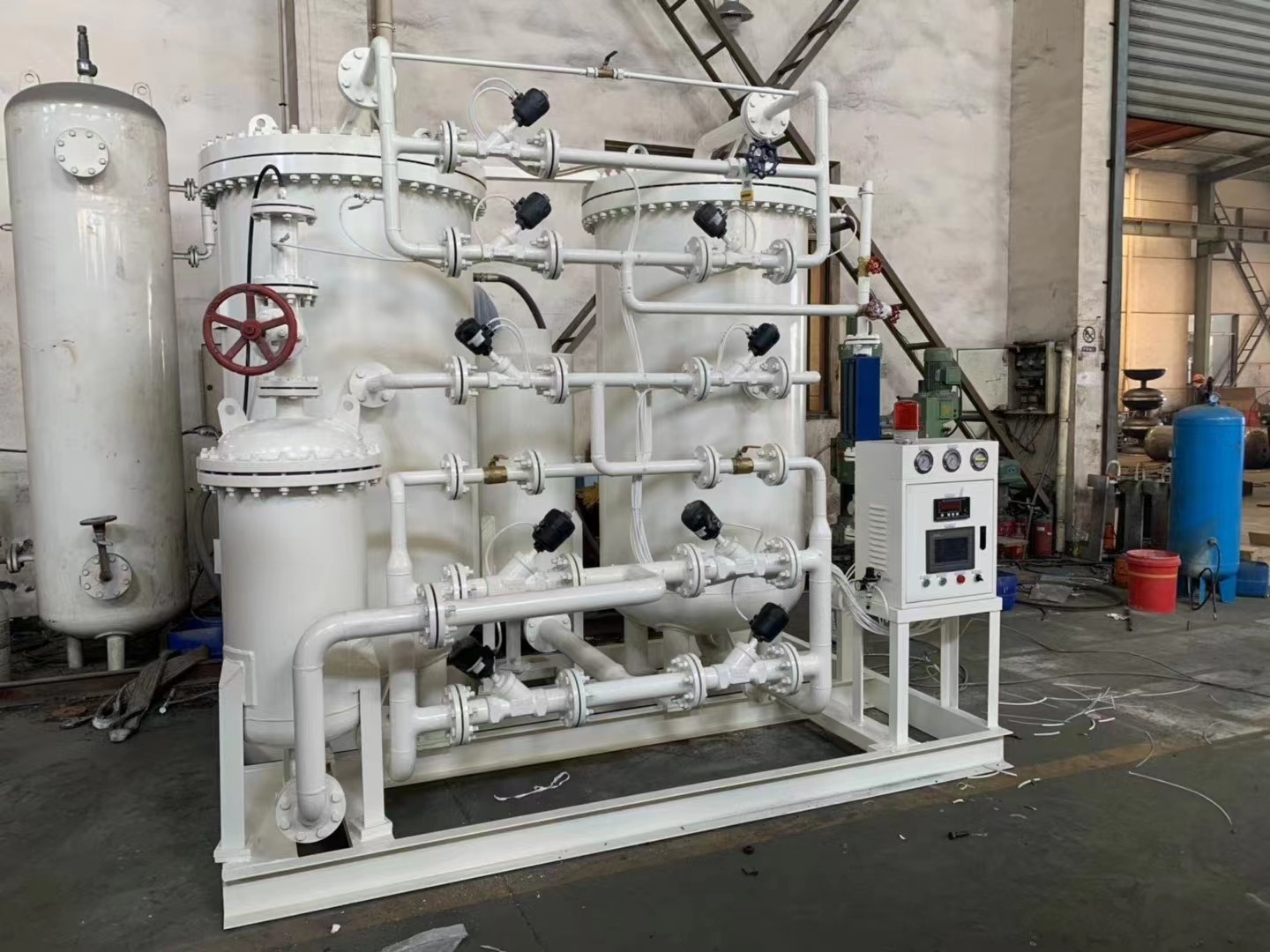

PSA Modular Oxygen Generation System 1.0Mpa Oxygen Generator Equipment 0
