99.995 99.999 Gas Purification Unit Laser Cutting Nitrogen Generator

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Gas Purification Unit | MOQ | 1 Set |
---|---|---|---|
After-sales Service Provided | Video Technical Support Online Support | Color | White/Customized Color |
Advantage | Easy Operation | Warranty Of Core Components | 1year |
High Light | 99.999 Gas Purification Unit,99.999 Laser Cutting Nitrogen Generator,99.995 Laser Cutting Nitrogen Generator |

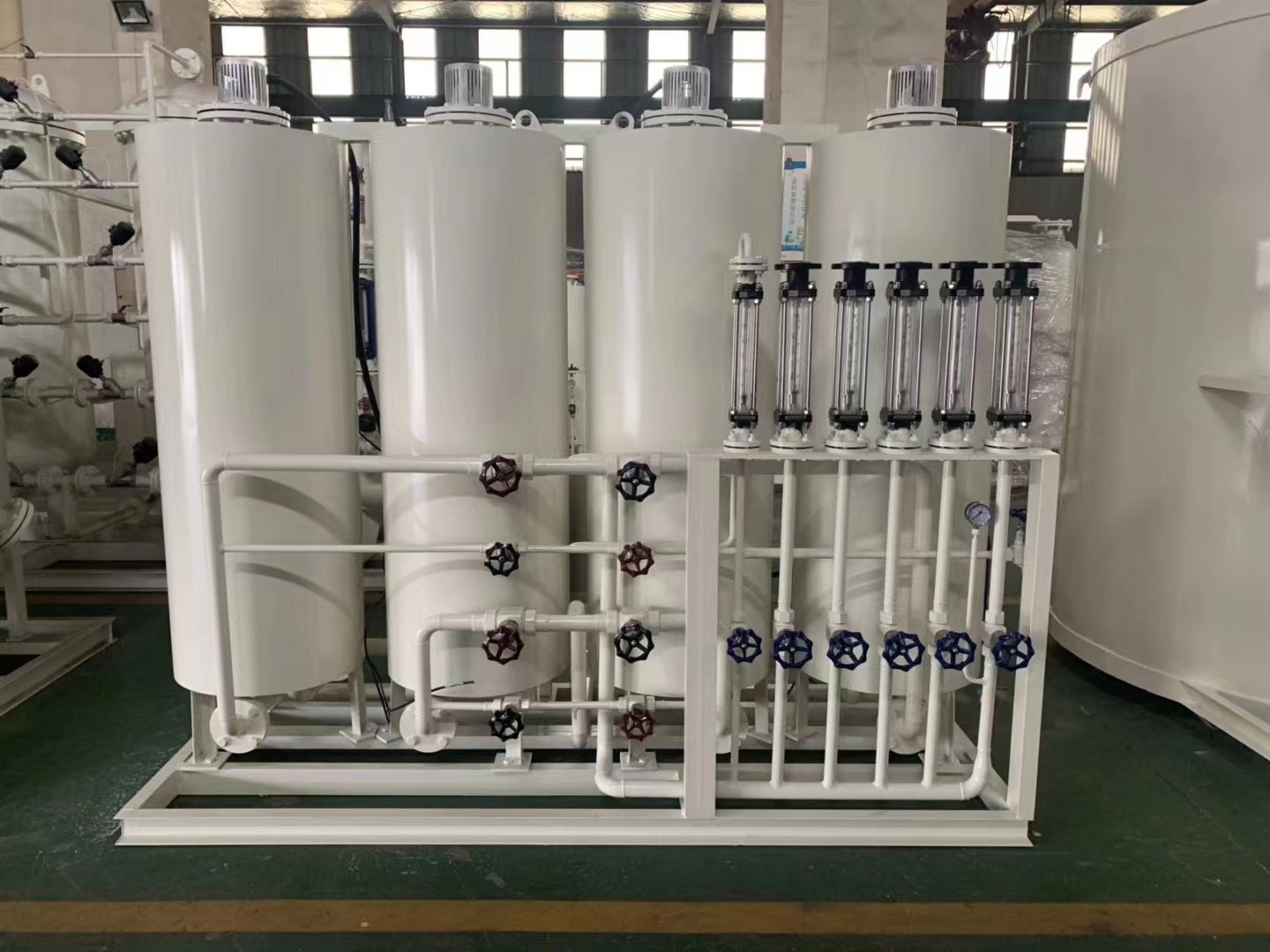

Gas Purification Unit Laser Cutting Machine Equipment
Technical parameters of nitrogen generator | |||||||||||
carbon molecular sieve capacity(KG) |
purity/nitrogen capacity(Nm³/h) Low purity |
purity/nitrogen capacity(Nm3/h) high purity |
|||||||||
95% | 96% | 97% | 98% | 99% | 99.5% | 99.9% | 99.95% | 99.99% | 99.995% | 99.999% | |
120 | 55 | 50 | 45 | 40 | 30 | 30 | 20 | 20 | 15 | 13 | 10 |
150 | 75 | 70 | 65 | 50 | 45 | 35 | 25 | 25 | 20 | 15 | 13 |
180 | 80 | 80 | 70 | 60 | 50 | 40 | 30 | 30 | 22 | 20 | 15 |
210 | 105 | 100 | 90 | 80 | 65 | 50 | 35 | 35 | 25 | 25 | 18 |
240 | 115 | 110 | 100 | 90 | 70 | 60 | 40 | 40 | 30 | 27 | 20 |
276 | 130 | 120 | 110 | 100 | 80 | 70 | 45 | 45 | 35 | 30 | 23 |
300 | 150 | 140 | 130 | 110 | 90 | 80 | 50 | 50 | 40 | 35 | 25 |
336 | 170 | 160 | 140 | 120 | 100 | 85 | 60 | 60 | 45 | 40 | 28 |
360 | 180 | 170 | 150 | 130 | 110 | 90 | 65 | 65 | 48 | 42 | 30 |
PSA technique (Pressure Swing Adsorption, PSA for short):it's a kind of advanced gas separation technology, based on physical adsorption of gas molecule on the internal surface of adsorbent (porous solid substances), using adsorbents in the same pressure easy to absorb the high boiling point gas, difficult to absorb low boiling point gas, and under high pressure adsorption amount of absorbed gas increases, under low pressure adsorption of absorbed gas to reduce the features to achieve gas separation. This process under pressure adsorption of impurities, under reduced pressure adsorption of impurities, make the adsorbent regeneration, is the PSA cycle.
