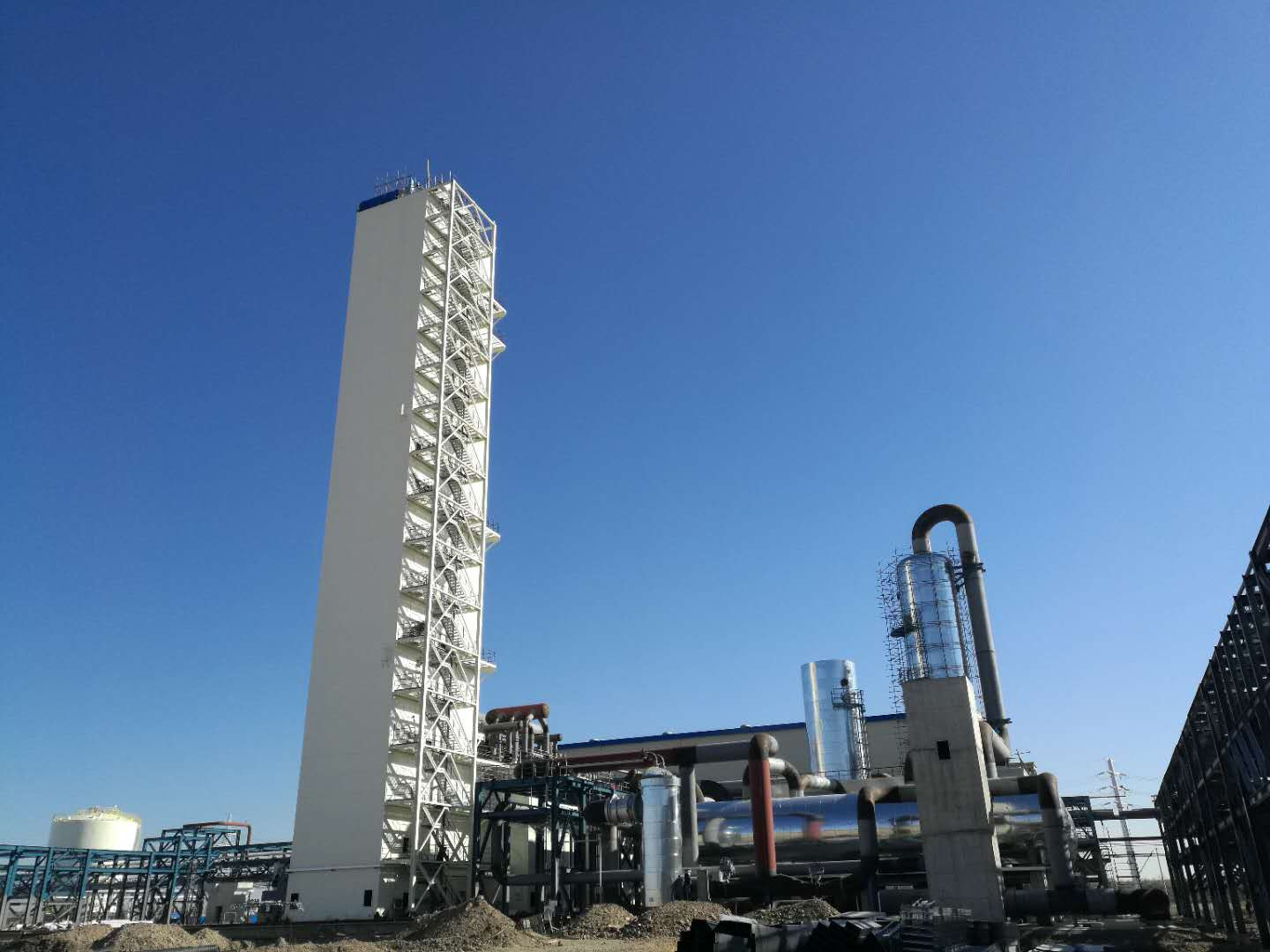

Custom Safety Reliability Air Separation Equipment Cryogenic Nitrogen Plant

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xHighlight | Cryogenic Nitrogen Plant,Custom Reliability Air Separation Equipment,Safety Cryogenic Air Separation Equipment |
---|
Working Principle
The basic principle of air separation is use cryogenic rectification to condense air into liquid and separate the air according to the evaporation temperature of each component. The two-stage rectification tower simultaneously obtains pure nitrogen and pure oxygen at the top and bottom of the upper tower. It is also possible to take out liquid oxygen and liquid nitrogen from the evaporation side and the condensation side of the main cooling respectively. The air separation in the rectification tower is divided into two stages, air is separated for the first time in the lower tower to obtain liquid nitrogen and at the same time obtain oxygen-enriched liquid air. The oxygen-enriched liquid air is sent to the upper tower for rectification to obtain pure oxygen and pure nitrogen. The upper tower is divided into two sections: with the liquid-air inlet as the boundary, the upper part
is the rectification section, which rectifies the rising gas, recovers the oxygen component, and purifies the nitrogen purity, and the lower section is the stripping section to remove the nitrogen components in the liquid, separated to improve the oxygen purity of the liquid.
Product Name | Cryogenic Air Separation Unit Plant |
Model No. |
JFDO- 50/60/80/100/CUSTOMIZED JFDN- 50/60/80/100/CUSTOMIZED JFDON- 50-50/60-25/80-30/100-50/CUSTOMIZED JFDOAR- 1000-20/1500-30/CUSTOMIZED JFDNAR- 1800-20/2700-30/CUSTOMIZED JFDONAR- 1000-150-20/1500-500-30/CUSTOMIZED |
Brand | JUNFANG |
Accessories | Air compressor & Pre- cooling system & Turbo Expandar & Air Purification Unit |
Usage | High purity Oxygen & Nitrogen & Argon production machine |
