Petroleum Nitrogen Production Equipment 99.95 Nitrogen Gas Generator

  • Petroleum Nitrogen Production Equipment 99.95 Nitrogen Gas Generator
Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension(L*W*H) Actual Size Warranty 1 Year
Key Selling Points Easy To Operate Marketing Type New Product 2020
Machinery Test Report Provided Video Outgoing-inspection Provided
High Light

Petroleum Nitrogen Production Equipment

,

99.95 Nitrogen Gas Generator

,

99.95 Nitrogen Production Equipment
Leave a Message
Product Description

Petroleum and natural gas coal mine chemical nitrogen production equipment

Working principle: According to the principle of variable pressure adsorption, high quality carbon molecular sieves are used as adsorbent to produce nitrogen from the air under a certain pressure. The compressed air, which has been purified and dried, is adsorbed under pressure and desorbed under reduced pressure in the adsorber. Due to the aerodynamic effect, the diffusion rate of oxygen in the micro-pores of the carbon molecular sieve is much greater than that of nitrogen, and the oxygen is preferentially adsorbed by the carbon molecular sieve, while the nitrogen is enriched in the gas phase to form the finished nitrogen gas. Then by reducing the pressure to atmospheric pressure, the adsorbent desorbs the adsorbed oxygen and other impurities, is to achieve regeneration. Generally in the system set up two adsorption tower, a tower adsorption nitrogen production, the other tower desorption regeneration, through the PLC program controller to control the start and close the pneumatic valve, so that the two towers alternate cycle, in order to achieve the purpose of continuous production of nitrogen.

Technical parameters of nitrogen generator
carbon
molecular
sieve
capacity(KG)		 purity/nitrogen capacity(Nm³/h)
Low purity		 purity/nitrogen capacity(Nm3/h)
high purity
95% 96% 97% 98% 99% 99.5% 99.9% 99.95% 99.99% 99.995% 99.999%
120 55 50 45 40 30 30 20 20 15 13 10
150 75 70 65 50 45 35 25 25 20 15 13
180 80 80 70 60 50 40 30 30 22 20 15
210 105 100 90 80 65 50 35 35 25 25 18
240 115 110 100 90 70 60 40 40 30 27 20
276 130 120 110 100 80 70 45 45 35 30 23
300 150 140 130 110 90 80 50 50 40 35 25
336 170 160 140 120 100 85 60 60 45 40 28
360 180 170 150 130 110 90 65 65 48 42 30
420 200 190 170 150 120 100 70 70 50 45 35
444 210 200 180 160 130 110 75 75 55 50 37
480 230 220 200 170 140 120 80 80 60 55 40
516 250 230 210 180 150 130 85 85 65 55 43
540 270 260 230 200 160 140 90 90 70 60 45
600 290 270 240 220 170 150 100 100 75 65 50
624 300 280 250 230 180 160 105 105 80 70 52
660 330 310 280 250 200 170 110 110 85 75 55
720 360 350 320 280 220 190 120 120 90 80 60
840 390 370 330 300 250 200 130 140 100 90 70
900 430 400 360 320 260 220 150 150 110 100 75
960 460 440 400 350 280 240 160 160 120 110 80
1020 480 460 410 370 290 250 170 170 125 115 85
1080 500 470 420 380 300 260 180 180 130 120 90
1200 550 520 470 400 330 280 190 190 140 130 100
1250 600 550 500 450 360 300 200 200 150 140 105
1300 630 600 540 480 390 320 220 220 160 150 110
1350 650 620 550 490 400 330 230 230 170 150 115
1400 670 630 570 500 410 350 250 250 180 160 120
1500 720 680 600 550 440 380 270 260 190 170 130
1550 760 720 650 580 460 400 280 270 200 180 135
1600 770 730 680 600 480 430 290 280 210 190 140
1700 850 800 720 650 520 450 300 300 220 200 150
1800 930 880 780 700 560 480 350 330 240 210 160
1900 950 900 800 730 580 500 370 350 250 220 170
2000 1000 950 850 750 620 550 400 370 270 230 180
2100 1100 1000 900 800 650 580 420 400 280 250 190
2200 1150 1050 950 850 700 6do² 430 420 300 260 200
2300 1200 1100 1000 900 750 650 450 450 320 270 210

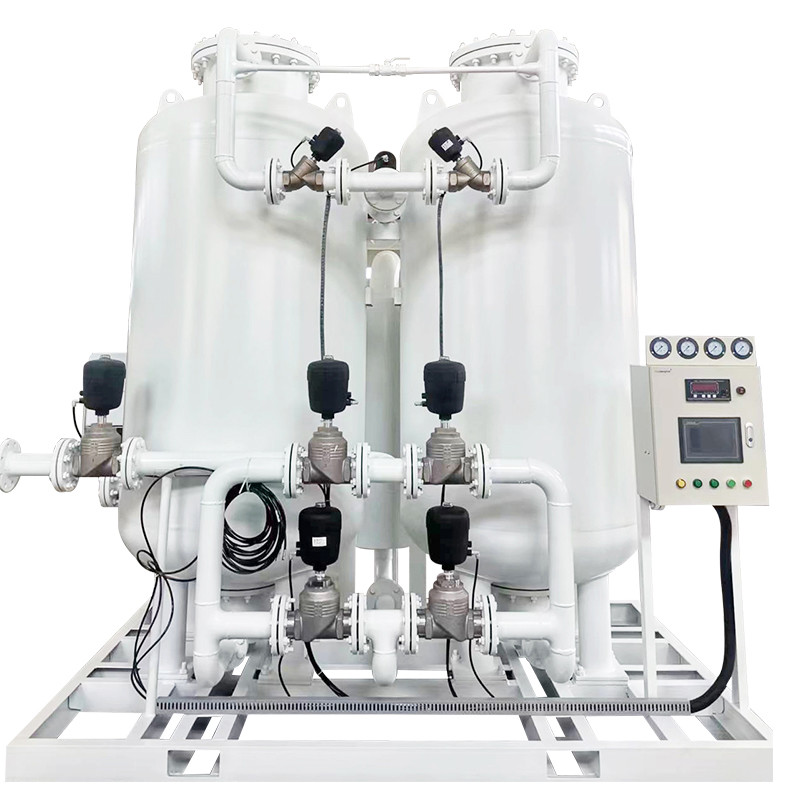

Petroleum Nitrogen Production Equipment 99.95 Nitrogen Gas Generator 0



PSA Technology
PSA( Pressure Swing Adsorption) is an advanced gas separation technology, based on the physical adsorption of the internal surface in the adsorbent to gas molecules, separating the gas by the characteristics of absorbing
to the quantity of different gas in general pressure. The CMS (Carbon Molecular Sieve) is a sorbent picked up from the air, used in separating Oxygen and Nitrogen molecular. The absorption quantity of CMS is greatly
higher for Oxygen than Nitrogen under the same pressure
