150Nm3/H PSA Oxygen Generation Plant Pressure Swing Adsorption Unit

  • 150Nm3/H PSA Oxygen Generation Plant Pressure Swing Adsorption Unit
Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Model Number JFO-200
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Oxygen Generator System Oxygen Purity 93%±2%
Dew Point ≤-40℃ Extract Gas State Gaseous State
Principle Compression Oxygen Pressure 0-0.5Mpa
Customized Service Yes Voltage Frequency 380V220V50HZ
High Light

PSA Pressure Swing Adsorption Unit

,

150Nm3/H PSA Oxygen Generation Plant

,

150Nm3/H Pressure Swing Adsorption Unit
Leave a Message
Product Description

Oxygen Generator PSA Pressure Swing Adsorption Oxygen Generator System Oxygen-Enriched Combustion Oxygen Generator

Oxygen Generator System



The purified air enters the two adsorption towers of the nitrogen generator through two channels, and alternately adsorbs and desorbs through the automatic switching of the pneumatic valve on the nitrogen generator. This process separates most of the nitrogen in the air from a small part of oxygen. And evacuate the nitrogen in the air.



Model Oxygen flow(Nm3/h) Oxygen purity(%) Overall dimension (mm)
JFO-3 3 93-96 1200x1200x1800
JFO-5 5 93-96 1200×1200×20000
JFO-10 10 93-96 1600x1500×2150
JFO-20 20 93-96 1800x1700x2550
JFO-30 30 93-96 1900x1700x2600
JFO-50 50 93-96 2100×2000x2750
JFO-100 100 93-96 5500x1550x3200
JFO-150 150 93-96 6000×1800×3500
JFO-200 200 93-96 6600×2000x3700



Oxygen enriched at the top of the tower is transported to the post-stage oxygen storage tank through the pipeline, and enters the gas use point after passing through the flow meter.

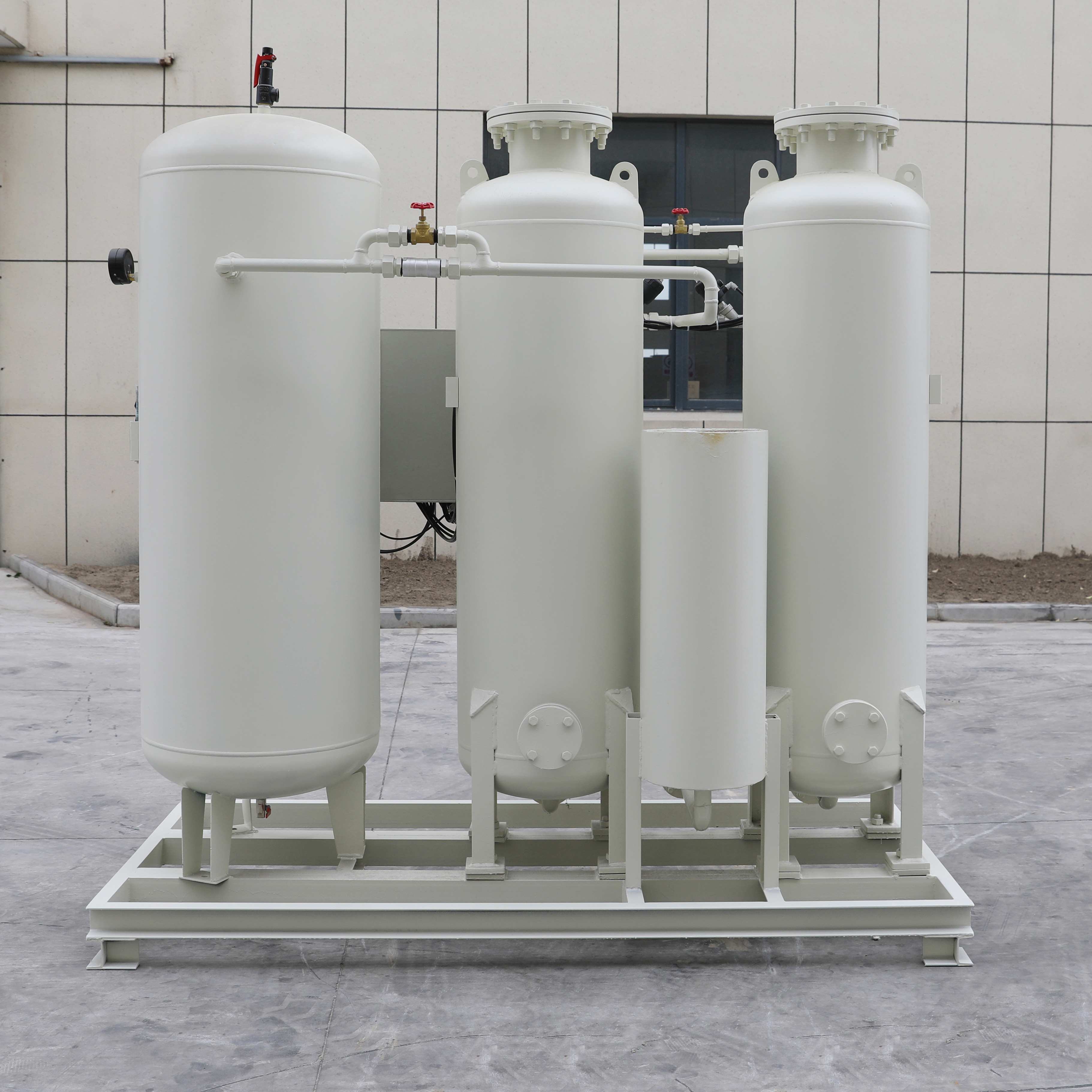

150Nm3/H PSA Oxygen Generation Plant Pressure Swing Adsorption Unit 0
