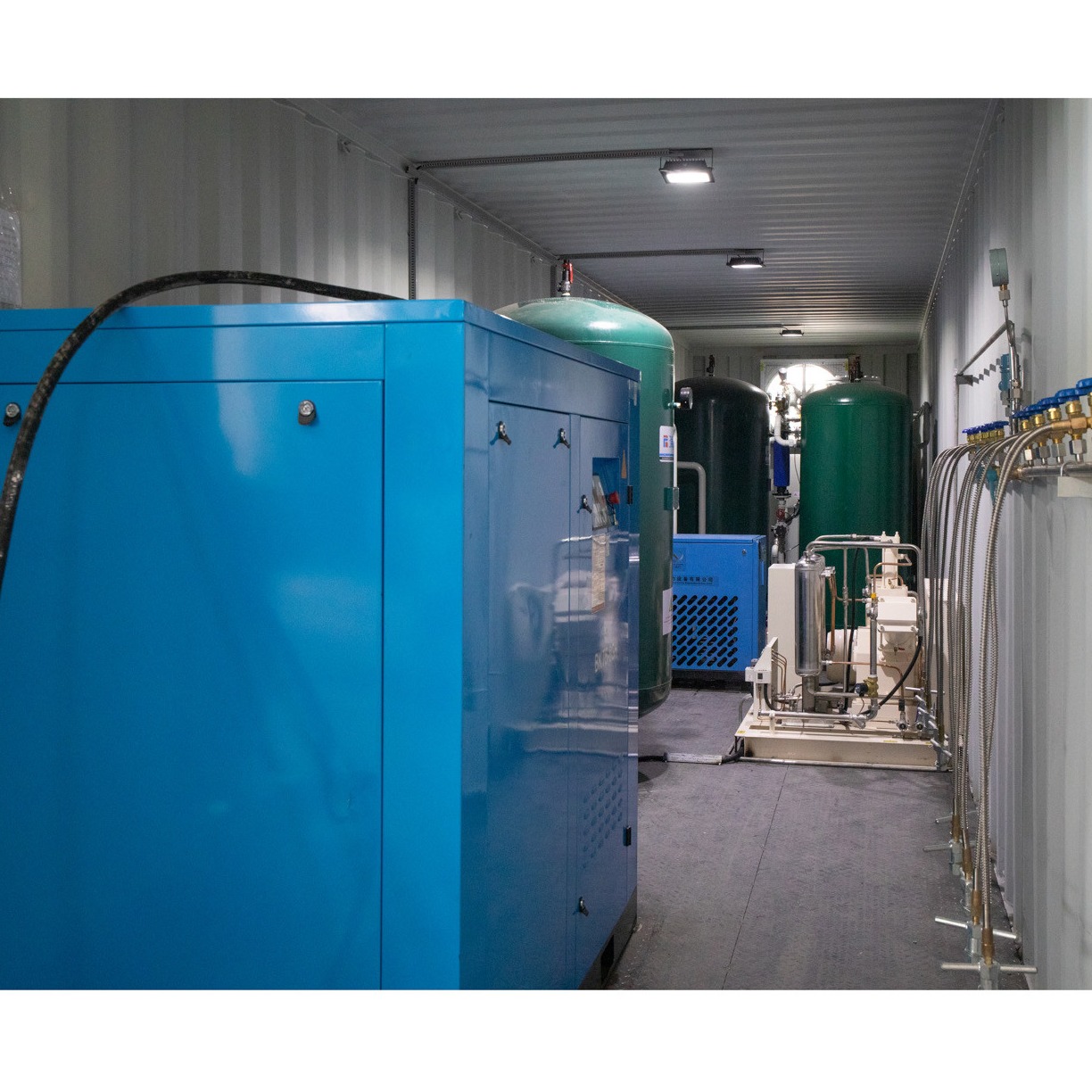

Centralized Oxygen Supply System 93% Pressure Swing Adsorption Oxygen Plant

Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Model Number JFO-200
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Centralised Oxygen Supply System Oxygen Purity 93%±3%
Extract Gas State Gaseous State Principle Pressure Swing Adsorption Technology
Oxygen Pressure 0-0.5Mpa Voltage Frequency 380V220V50HZ
High Light

Centralized Oxygen Supply System

,

Pressure Swing Adsorption Oxygen Plant

,

93% Oxygen Supply System

Leave a Message
Product Description

High-Purity Oxygen Equipment Centralized Oxygen Supply System Breathing Oxygen Generator

Centralised Oxygen Supply System



Process flow of centralized oxygen supply system:


The raw air is blown out after the dust particles are removed through the suction inlet filter.
The fan is pressurized to 0.45 barg and enters one of the adsorbers. The adsorber is filled with adsorbent, in which moisture, carbon dioxide, and a small amount of other gas components are adsorbed by the activated alumina packed at the bottom at the inlet of the adsorber, and then nitrogen is adsorbed by the zeolite molecular sieve packed on the top of the activated alumina.



Name

Centralised Oxygen Supply System

Model FO-3 JFO-5 JFO-10 JFO-20 JFO-30 JFO-50 JFO-100 JFO-150 JFO-200
Oxygen purity 93%±3%

Principle

Pressure Swing Adsorption Technology

Oxygen pressure

0-0.5Mpa

Extract gas state

gaseous state

Application field

medical, pharmaceutical,chemical, petroleum



Centralized Oxygen Supply System 93% Pressure Swing Adsorption Oxygen Plant 0
