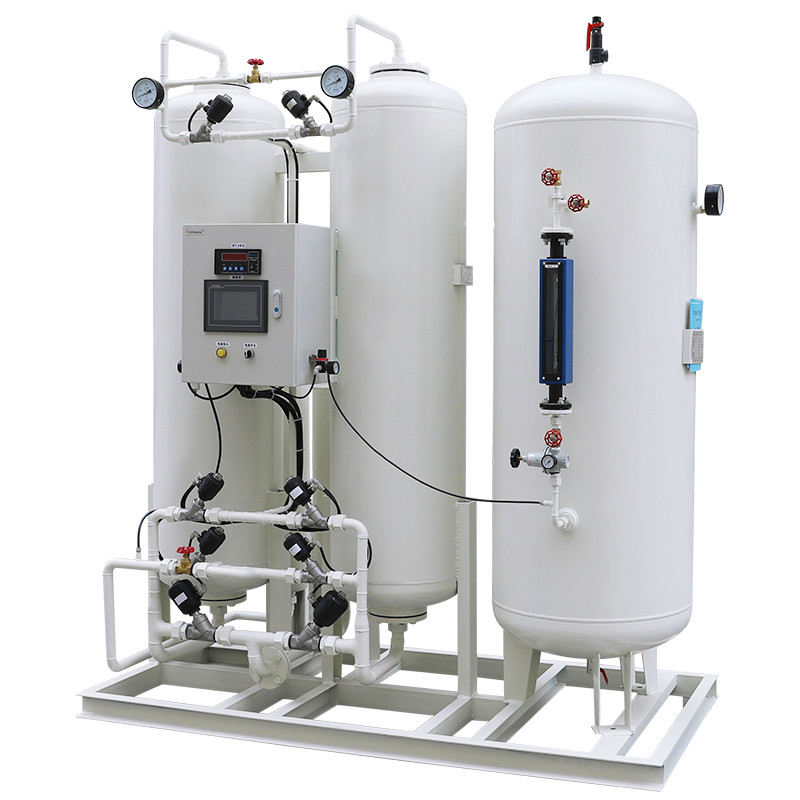

96% 97% PSA Based Nitrogen Plant Nitrogen Generation By Psa System

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Liquid Nitrogen Plant | Weight | 6700kg |
---|---|---|---|
Warranty | 3years | Core Components | PLC, Pressure Vessel, Engine, Pump |
Technology | PSA System | Dew Point | -40 To -60℃ |
High Light | 97% PSA Based Nitrogen Plant,96% PSA Based Nitrogen Plant,Nitrogen Generation By Psa System |
Liquid Nitrogen Plant Psa Nitrogen Gas Generator Psa Nitrogen Gas Generator
Technical parameters of nitrogen generator | |||||||||||
carbon molecular sieve capacity(KG) |
purity/nitrogen capacity(Nm³/h) Low purity |
purity/nitrogen capacity(Nm3/h) high purity |
|||||||||
95% | 96% | 97% | 98% | 99% | 99.5% | 99.9% | 99.95% | 99.99% | 99.995% | 99.999% | |
120 | 55 | 50 | 45 | 40 | 30 | 30 | 20 | 20 | 15 | 13 | 10 |
150 | 75 | 70 | 65 | 50 | 45 | 35 | 25 | 25 | 20 | 15 | 13 |
180 | 80 | 80 | 70 | 60 | 50 | 40 | 30 | 30 | 22 | 20 | 15 |
210 | 105 | 100 | 90 | 80 | 65 | 50 | 35 | 35 | 25 | 25 | 18 |
240 | 115 | 110 | 100 | 90 | 70 | 60 | 40 | 40 | 30 | 27 | 20 |
276 | 130 | 120 | 110 | 100 | 80 | 70 | 45 | 45 | 35 | 30 | 23 |
300 | 150 | 140 | 130 | 110 | 90 | 80 | 50 | 50 | 40 | 35 | 25 |
336 | 170 | 160 | 140 | 120 | 100 | 85 | 60 | 60 | 45 | 40 | 28 |
360 | 180 | 170 | 150 | 130 | 110 | 90 | 65 | 65 | 48 | 42 | 30 |
420 | 200 | 190 | 170 | 150 | 120 | 100 | 70 | 70 | 50 | 45 | 35 |
444 | 210 | 200 | 180 | 160 | 130 | 110 | 75 | 75 | 55 | 50 | 37 |
480 | 230 | 220 | 200 | 170 | 140 | 120 | 80 | 80 | 60 | 55 | 40 |
516 | 250 | 230 | 210 | 180 | 150 | 130 | 85 | 85 | 65 | 55 | 43 |
540 | 270 | 260 | 230 | 200 | 160 | 140 | 90 | 90 | 70 | 60 | 45 |
600 | 290 | 270 | 240 | 220 | 170 | 150 | 100 | 100 | 75 | 65 | 50 |
624 | 300 | 280 | 250 | 230 | 180 | 160 | 105 | 105 | 80 | 70 | 52 |
660 | 330 | 310 | 280 | 250 | 200 | 170 | 110 | 110 | 85 | 75 | 55 |
720 | 360 | 350 | 320 | 280 | 220 | 190 | 120 | 120 | 90 | 80 | 60 |
840 | 390 | 370 | 330 | 300 | 250 | 200 | 130 | 140 | 100 | 90 | 70 |
900 | 430 | 400 | 360 | 320 | 260 | 220 | 150 | 150 | 110 | 100 | 75 |
960 | 460 | 440 | 400 | 350 | 280 | 240 | 160 | 160 | 120 | 110 | 80 |
1020 | 480 | 460 | 410 | 370 | 290 | 250 | 170 | 170 | 125 | 115 | 85 |
1080 | 500 | 470 | 420 | 380 | 300 | 260 | 180 | 180 | 130 | 120 | 90 |
1200 | 550 | 520 | 470 | 400 | 330 | 280 | 190 | 190 | 140 | 130 | 100 |
1250 | 600 | 550 | 500 | 450 | 360 | 300 | 200 | 200 | 150 | 140 | 105 |
1300 | 630 | 600 | 540 | 480 | 390 | 320 | 220 | 220 | 160 | 150 | 110 |
1350 | 650 | 620 | 550 | 490 | 400 | 330 | 230 | 230 | 170 | 150 | 115 |
1400 | 670 | 630 | 570 | 500 | 410 | 350 | 250 | 250 | 180 | 160 | 120 |
1500 | 720 | 680 | 600 | 550 | 440 | 380 | 270 | 260 | 190 | 170 | 130 |
1550 | 760 | 720 | 650 | 580 | 460 | 400 | 280 | 270 | 200 | 180 | 135 |
1600 | 770 | 730 | 680 | 600 | 480 | 430 | 290 | 280 | 210 | 190 | 140 |
1700 | 850 | 800 | 720 | 650 | 520 | 450 | 300 | 300 | 220 | 200 | 150 |
1800 | 930 | 880 | 780 | 700 | 560 | 480 | 350 | 330 | 240 | 210 | 160 |
1900 | 950 | 900 | 800 | 730 | 580 | 500 | 370 | 350 | 250 | 220 | 170 |
2000 | 1000 | 950 | 850 | 750 | 620 | 550 | 400 | 370 | 270 | 230 | 180 |
2100 | 1100 | 1000 | 900 | 800 | 650 | 580 | 420 | 400 | 280 | 250 | 190 |
2200 | 1150 | 1050 | 950 | 850 | 700 | 6do² | 430 | 420 | 300 | 260 | 200 |
2300 | 1200 | 1100 | 1000 | 900 | 750 | 650 | 450 | 450 | 320 | 270 | 210 |
Nitrogen is normally used as protective gas or atmosphere gas for reduction and carburetor. Under-circumstance of room temperature and high pressure, oxygen and nitrogen are separated by different-diffusion rate in CMS.Nitrogen purity and output volume is adjustable to meet customer’s requirements.
PSA technique (Pressure Swing Adsorption, PSA for short):it's a kind of advanced gas separation technology, based on physical adsorption of gas molecule on the internal surface of adsorbent (porous solid substances), using adsorbents in the same pressure easy to absorb the high boiling point gas, difficult to absorb low boiling point gas, and under high pressure adsorption amount of absorbed gas increases, under low pressure adsorption of absorbed gas to reduce the features to achieve gas separation. This process under pressure adsorption of impurities, under reduced pressure adsorption of impurities, make the adsorbent regeneration, is the PSA cycle.
