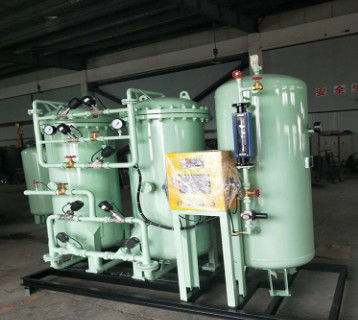

Industrial Liquid Nitrogen Generator 99.99 Air Products Air Separation Unit

Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220v/380v/50-60hz Usage Nitrogen
Warranty 1 Year Weight Actual Weight
Product Name Air Separation Plant Advantage Energy Saving
High Light

99.99 Air Products Air Separation Unit

,

industrial liquid nitrogen generator

,

99.99 liquid nitrogen generator

Leave a Message
Product Description

Industrial Large-Scale Nitrogen Generator Nitrogen Generator Equipment



Working principle: According to the principle of variable pressure adsorption, high quality carbon molecular sieve is used as adsorbent to produce nitrogen from air under a certain pressure. After purified and dried compressed air, it is adsorbed under pressure and desorbed under reduced pressure in the adsorber. Due to the aerodynamic effect, the diffusion rate of oxygen in the micro-pores of the carbon molecular sieve is much larger than that of nitrogen, and oxygen is preferentially adsorbed by the carbon molecular sieve, while nitrogen is enriched in the gas phase to form the finished nitrogen gas. Then by reducing the pressure to atmospheric pressure, the adsorbent desorbs the adsorbed oxygen and other impurities, is to achieve regeneration. Generally, two adsorption towers are set up in the system, one tower adsorption nitrogen production, the other tower desorption regeneration, through the PLC program controller to control the start and close the pneumatic valve, so that the two towers alternate cycle, in order to achieve the purpose of continuous production of nitrogen.

Technical parameters of nitrogen generator
carbon
molecular
sieve
capacity(KG)
purity/nitrogen capacity(Nm³/h)
Low purity
purity/nitrogen capacity(Nm3/h)
high purity
95% 96% 97% 98% 99% 99.5% 99.9% 99.95% 99.99% 99.995% 99.999%
120 55 50 45 40 30 30 20 20 15 13 10
150 75 70 65 50 45 35 25 25 20 15 13
180 80 80 70 60 50 40 30 30 22 20 15
210 105 100 90 80 65 50 35 35 25 25 18
240 115 110 100 90 70 60 40 40 30 27 20
276 130 120 110 100 80 70 45 45 35 30 23
300 150 140 130 110 90 80 50 50 40 35 25
336 170 160 140 120 100 85 60 60 45 40 28
360 180 170 150 130 110 90 65 65 48 42 30
420 200 190 170 150 120 100 70 70 50 45 35
444 210 200 180 160 130 110 75 75 55 50 37
480 230 220 200 170 140 120 80 80 60 55 40
516 250 230 210 180 150 130 85 85 65 55 43
540 270 260 230 200 160 140 90 90 70 60 45
600 290 270 240 220 170 150 100 100 75 65 50
624 300 280 250 230 180 160 105 105 80 70 52
660 330 310 280 250 200 170 110 110 85 75 55
720 360 350 320 280 220 190 120 120 90 80 60
