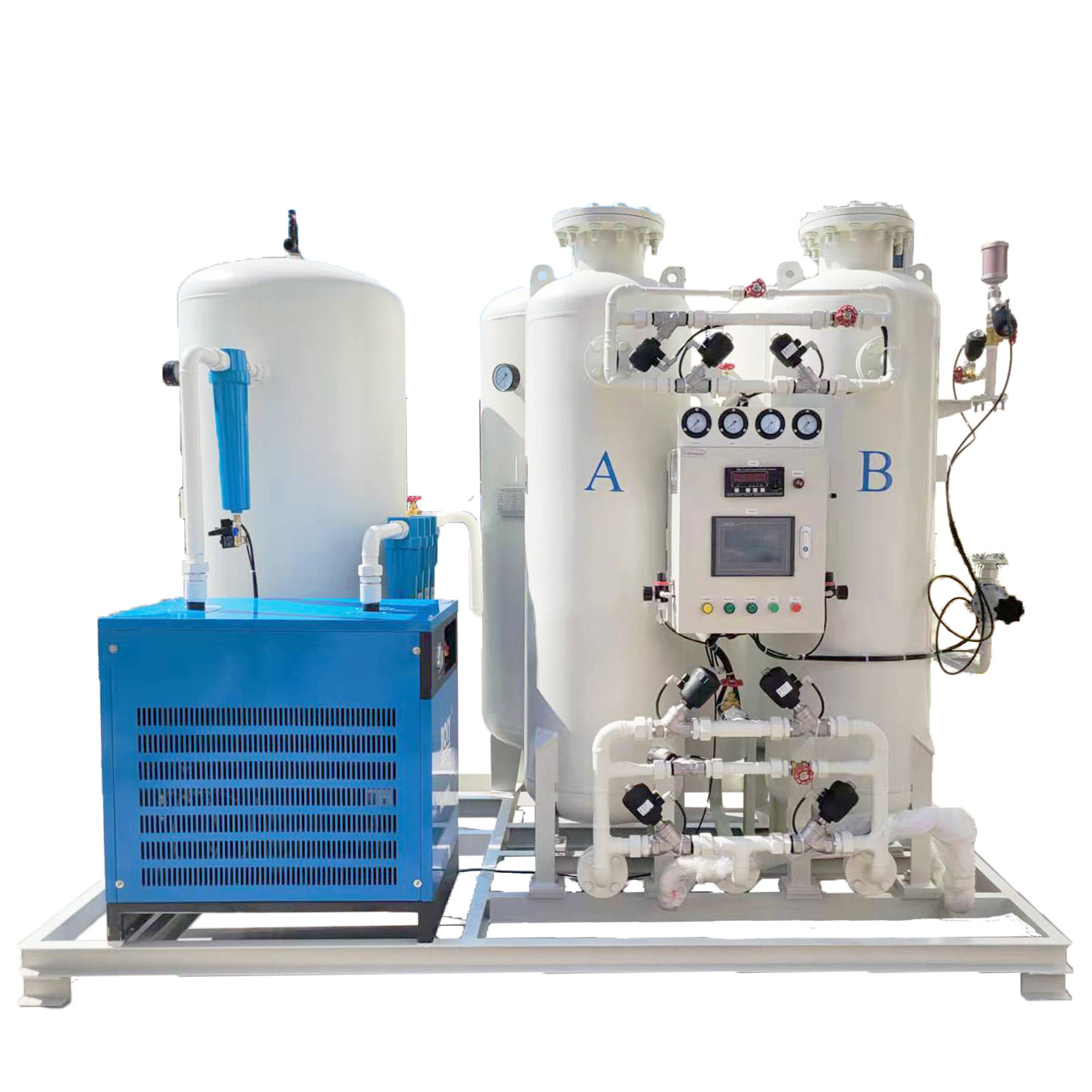

Laser N2 Nitrogen Generator 99.999 Pressure Swing Adsorption Unit

Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Nitrogen Laser N2 Nitrogen Generator Warranty 18months After Shipment
Voltage 220V/380V Usage Nitrogen
Condition New After-sales Service Provided Video Technical Support
Capacity 1~5000m3/h Type Pressure Swing Adsorption(PSA)
High Light

Laser N2 Nitrogen Generator

,

99.999 Pressure Swing Adsorption Unit

,

99.999 N2 Nitrogen Generator

Leave a Message
Product Description

Nitrogen Laser N2 Nitrogen Generator



When cutting stainless steel or aluminum, nitrogen is usually used to obtain excellent quality. Unlike oxygen, nitrogen is used as a protective gas in lightweight materials to prevent the combustion process and allow the laser to vaporize the material. This means that power is the decisive factor of cutting speed; More power equals faster speed



capacity  1-5000Nm3/h
Purity  95%-99.999%
Pressure 0.1-0.7mpa
Dew Point ≤-45
Control Mode PLC



Laser cutting is a thermal processing process in which the laser beam is used as a tool. The specific parameters used in this process, such as laser power and auxiliary gas type, will significantly affect the overall quality and processing time during operation. The most commonly used auxiliary gases are oxygen and nitrogen. Their selection depends on the type, thickness and required edge quality of the material to be cut.



Laser N2 Nitrogen Generator 99.999 Pressure Swing Adsorption Unit 0



Nitrogen Generater is used in the nitrogen laser more and more.



When cutting stainless steel or aluminum, nitrogen is usually used to obtain excellent quality. Unlike oxygen, nitrogen is used as a protective gas in lightweight materials to prevent the combustion process and allow the laser to vaporize the material. This means that power is the decisive factor of cutting speed; More power equals faster speed.



PSA Technology
PSA( Pressure Swing Adsorption) is an advanced gas separation technology, based on the physical adsorption of the internal surface in the adsorbent to gas molecules, separating the gas by the characteristics of absorbing
to the quantity of different gas in general pressure. The CMS (Carbon Molecular Sieve) is a sorbent picked up from the air, used in separating Oxygen and Nitrogen molecular. The absorption quantity of CMS is greatly
higher for Oxygen than Nitrogen under the same pressure
