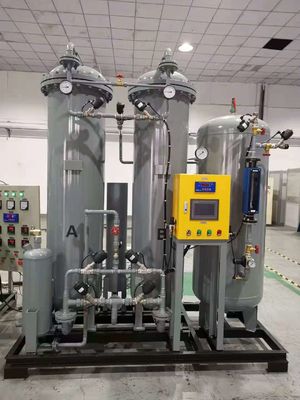

1-3000Nm3/H Air Products Nitrogen Generator PSA Nitrogen Gas Plant

Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Nitrogen Gas Generator Condition New
Production Rate 100% Warranty 1 Year
Key Selling Points Easy To Operate
High Light

3000Nm3/H Air Products Nitrogen Generator

,

1Nm3/H Air Products Nitrogen Generator

,

1Nm3/H PSA Nitrogen Gas Plant

Leave a Message
Product Description

High Purity Nitrogen Small Plant Generator Equipment

Working principle: According to the principle of variable pressure adsorption, high quality carbon molecular sieve is used as adsorbent to produce nitrogen from air under a certain pressure. After purified and dried compressed air, it is adsorbed under pressure and desorbed under reduced pressure in the adsorber. Due to the aerodynamic effect, the diffusion rate of oxygen in the micro-pores of the carbon molecular sieve is much larger than that of nitrogen, and oxygen is preferentially adsorbed by the carbon molecular sieve, while nitrogen is enriched in the gas phase to form the finished nitrogen gas. Then by reducing the pressure to atmospheric pressure, the adsorbent desorbs the adsorbed oxygen and other impurities, is to achieve regeneration. Generally, two adsorption towers are set up in the system, one tower adsorption nitrogen production, the other tower desorption regeneration, through the PLC program controller to control the start and close the pneumatic valve, so that the two towers alternate cycle, in order to achieve the purpose of continuous production of nitrogen.

Nitrogen Flow Rate 1-3000Nm3/h
Nitrogen Purity 95%-99.999%
Outlet Pressure Normal 1-6.5bar adjustable/ Customized
Dew Point <-40℃-45℃
