3000Nm3/H PSA Unit Pressure Swing Adsorption Industrial Nitrogen Generator

Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Minimum Order Quantity 1 set
Price negotiable
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Actual Voltage Condition New
Warranty 12 Months Dimension(l*w*h) 1660*815*1200mm
Weight Actual Weight Product Name PSA Nitrogen Generator Machine
High Light

PSA Unit Pressure Swing Adsorption

,

3000Nm3/H PSA Unit

,

3000Nm3/H Industrial Nitrogen Generator

Leave a Message
Product Description

PSA Pressure Swing Adsorption Industrial Nitrogen Generator



Nitrogen Flow Rate 1-3000Nm3/h
Nitrogen Purity 95%-99.999%
Outlet Pressure Normal 1-6.5bar adjustable/ Customized
Dew Point <-40℃-45℃



Pressure swing adsorption (PSA) is a new gas separation technology. The principle is the separation of gas mixture adsorption performance difference molecular sieve different gases using air as raw material, and the use of a highly efficient, highly selective solid adsorbent selective adsorption of nitrogen and oxygen from the air nitrogen and oxygen separation. The separation effect of carbon molecular sieve on nitrogen and oxygen is mainly based on the different diffusion rates of the two gases on the surface of carbon molecular sieve. The smaller diameter of the gas (oxygen) under different pressure diffusion rate is faster, into the solid phase adsorption gas, reduce the pressure, so that the carbon molecular sieve release of oxygen adsorption. This process is called regeneration. Pressure swing adsorption (PSA) usually uses two parallel towers alternately for pressure adsorption and decompression regeneration to obtain a continuous flow of nitrogen.

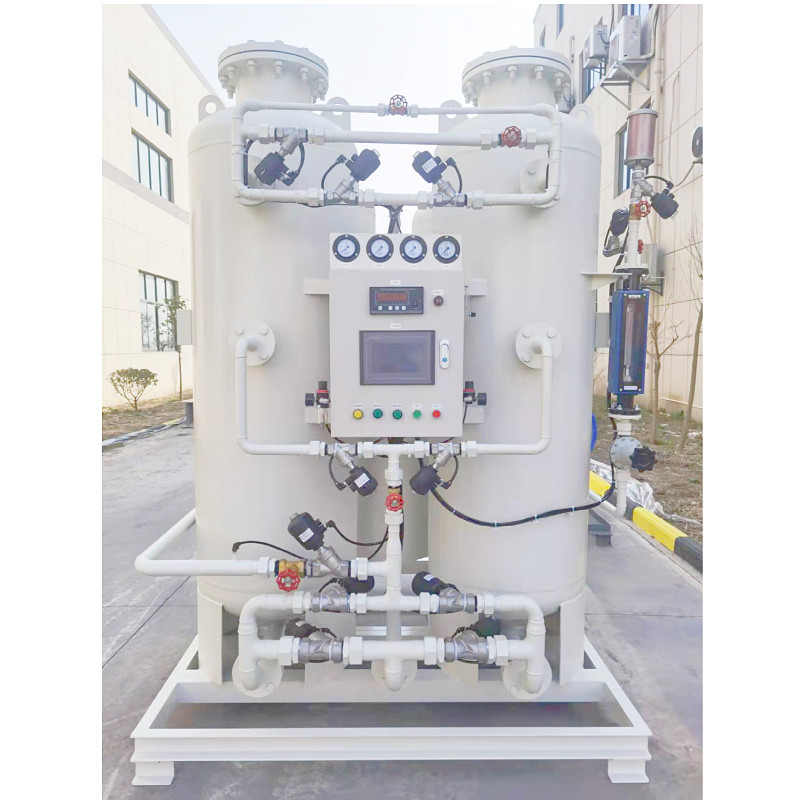

3000Nm3/H PSA Unit Pressure Swing Adsorption Industrial Nitrogen Generator 0

The raw air is taken from nature, and nitrogen can be produced only by providing compressed air and power supply. The equipment has low energy consumption and low operation cost



The purity of nitrogen can be adjusted easily. The purity of nitrogen is only affected by the amount of nitrogen exhaust. The purity of common nitrogen can be adjusted between 95% and 99.99%; The high purity nitrogen generator can be adjusted between 99% and 99.999%
