90%-99% PSA Oxygen Concentrator Box Type Oxygen Generator System

  • 90%-99% PSA Oxygen Concentrator Box Type Oxygen Generator System
Place of Origin Henan, China
Brand Name JUNFANG
Certification CE/ISO
Model Number JFO-300
Minimum Order Quantity 1 set
Price negotiable
Packaging Details 20ft, 40ft
Delivery Time 7-20 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 set/ monty

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Production Rate 100%
Warranty 18 Months Color White/Customised
Capacity 1-3000Nm3/h Type PSA
Usage Oxygen Voltage 220V/380v
Purity 90%-99% Material Carbon Steel
Technology PAS System
High Light

99% PSA Oxygen Concentrator

,

90% PSA Oxygen Concentrator

,

Box Type Oxygen Generator System
You can tick the products you need and communicate with us in the message board.
Productnumber Gasproductionm³/h Oxygenconcentration/% Oxygenpressure/Mpa Power 220VPower/Kw Host weight/kg Dimensions/mm Air loss factor Number of bottles per day 40L/120-150kg
3 3 93±3 0.4±0.1 0.2 600 1500*900*1500 13.5 12-15
5 5 93±3 0.4±0.1 0.2 900 1600*900*1500 13.5 20-24
10 10 93±3 0.4±0.1 0.2 1200 1600*900*1900 13.5 40-48
20 20 93±3 0.4±0.1 0.2 1500 1900*1000*2180 13.5 80-96
30 30 93±3 0.4±0.1 0.2 2000 2000*1100*2180 13.5 120-154
40 40 93±3 0.4±0.1 0.2 2500 2600*1200*2300 13.5 160-192
50 50 93±3 0.4±0.1 0.5 2800 1800*1500*2400+800 13.5 200-240
60 60 93±3 0.4±0.1 0.5 3200 1800*1500*2600+800 13.5 240-300
70 70 93±3 0.4±0.1 0.5 3500 1800*1600*2800+800 13.5 280-350
80 80 93±3 0.4±0.1 0.5 4000 1800*1600*2900+1000 13.5 320-394
90 90 93±3 0.4±0.1 0.5 4800 2000*1600*2800+1000 13.5 360-432
100 100 93±3 0.4±0.1 0.5 5800 2200*1600*2900+1000 13.5 400-480
120 120 93±3 0.4±0.1 0.5 6500 2400*1600*3100+1000 13.5 480-576
150 150 93±3 0.4±0.1 0.5 8000 2600*1600*3100+1000 13.5 576-720
180 180 93±3 0.4±0.1 0.5 9500 2700*1600*3200+1000 13.5 720-900
200 200 93±3 0.4±0.1 0.5 10500 2800*1600*3200+1000 13.5 900-1000
Leave a Message
Productnumber Gasproductionm³/h Oxygenconcentration/% Oxygenpressure/Mpa Power 220VPower/Kw Host weight/kg Dimensions/mm Air loss factor Number of bottles per day 40L/120-150kg
Product Description

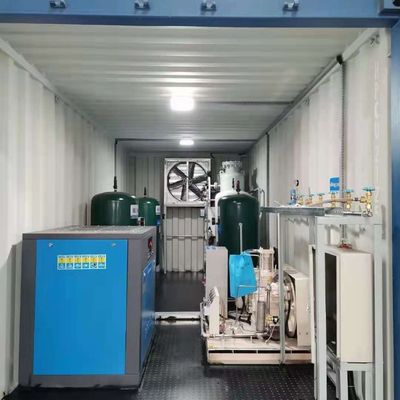

PSA Box Type Oxygen Generator System



Characteristics of oxygen generation equipment:



1. Large oxygen production and low energy consumption; The oxygen purity can be adjusted easily between 25% and 95%;



2. The maintenance cost is low, and the moving equipment is blower and vacuum pump; Convenient and simple maintenance;



3. The whole set of equipment is highly automated, single-fingered operation, simple maintenance, and the equipment does not need to be watched by special personnel;



4. The unique pressing device ensures that the molecular sieve always operates statically, and ensures that the molecular sieve does not pulverize or add;



5. The internal and external surfaces of pressure-containing parts have been sandblasted and degreased, greatly extending the service life of pneumatic parts, detection parts and vacuum pumps;



6. Optional oxygen flow, purity automatic regulation system and transportation control system.



Application field and purpose:



1. Metallurgical industry: electric arc furnace steelmaking, blast furnace ironmaking and oxygen-enriched, shaft furnace oxygen-enriched combustion support;



2. Non-ferrous metallurgy industry: smelting of gold, silver, lead, copper, zinc, aluminum, etc., and oxygen-enriched combustion in various furnaces;



3. Environmental protection industry: drinking water treatment, wastewater treatment, pulp bleaching, sewage biochemical treatment, garbage incineration;



4. Chemical industry: various oxidation reactions, ozone production, coal gasification, drug production;



5. Medical and health care industry: medical oxygen, oxygen therapy, oxygen health care;



6. Aquaculture: marine and freshwater aquaculture;



7. Other industries: fermentation, welding and cutting, glass furnace, air conditioning, garbage incineration;



8. Electric furnace steelmaking: decarburization, oxygen combustion heating, foam slag dissolution, metallurgical control and subsequent heating;



9. Wastewater treatment: oxygen-enriched aeration of activated sludge, tank oxygenation and ozone sterilization; Glass melting and cutting;



10. Increase glass output and prolong furnace life;



11. Non-ferrous gold smelting: smelting copper, gold, lead, nickel, etc. requires oxygen enrichment, and PSA method is gradually replacing Shenling method;



12. Field cutting construction: field steel pipe, steel plate cutting with oxygen-enriched, mobile or small oxygen generator can meet the requirements;



13. Oxygen for petrochemical and industrial use: the oxygen reaction in the process of petroleum and chemical industry is carried out by using reoxygenation instead of air;



14. Oxidation reaction can improve reaction speed and chemical product output;



15. Ore processing: used in gold and other production processes to improve the metal extraction rate;



16. Applied water: provide oxygen to the ozone generator for ozone sterilization.
