25NM3/H PSA Oxygen Plant With Cylinder Filling Manifold System

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Modular Oxygen Generator | Advantage | Easy Operation |
---|---|---|---|
Pressure | 0.1~1.0Mpa (adjustable) | MOQ | 1 Set |
After-sales Service Provided | Video Technical Support Online Support | Color | White/Customized Color |
High Light | 25NM3/H PSA Oxygen Plant,Cylinder Filling Manifold PSA Oxygen Plant,25NM3/H oxygen generator cylinder filling |

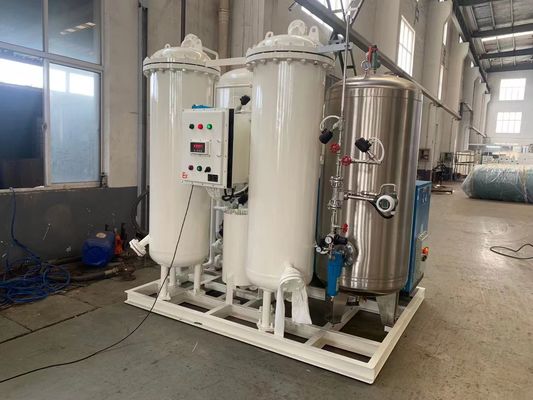

25NM3/H PSA Oxygen Generator Oxygen Plant With Cylinder Filling Manifold System
Technical parameters of oxygen generator | ||||||||
Product number |
Gas production m³/h |
Oxygen concentration /% |
Oxygen pressure /Mpa |
Power 220V Power/Kw |
Host weight/kg | Dimensions/mm | Air loss factor | Number of bottles per day 40L/120-150kg |
3 | 3 | 93±3 | 0.4±0.1 | 0.2 | 600 | 1500*900*1500 | 13.5 | 12-15 |
5 | 5 | 93±3 | 0.4±0.1 | 0.2 | 900 | 1600*900*1500 | 13.5 | 20-24 |
10 | 10 | 93±3 | 0.4±0.1 | 0.2 | 1200 | 1600*900*1900 | 13.5 | 40-48 |
20 | 20 | 93±3 | 0.4±0.1 | 0.2 | 1500 | 1900*1000*2180 | 13.5 | 80-96 |
30 | 30 | 93±3 | 0.4±0.1 | 0.2 | 2000 | 2000*1100*2180 | 13.5 | 120-154 |
40 | 40 | 93±3 | 0.4±0.1 | 0.2 | 2500 | 2600*1200*2300 | 13.5 | 160-192 |
The Structure is simple for PSA Oxygen Generator with advanced technology. It is more reliable, safer and automatic compared with
Cryogenic technology to liquid oxygen and high-pressure bottled oxygen.
Oxygen Equipment designed by HENGDA, mainly composed of the following components:
1.Air compressor
2.Compressed air purification components ( Filters and Air Dryer)
3.Air buffer tank
4.PSA O2&N2 separation system
5.O2 Storage Tank
