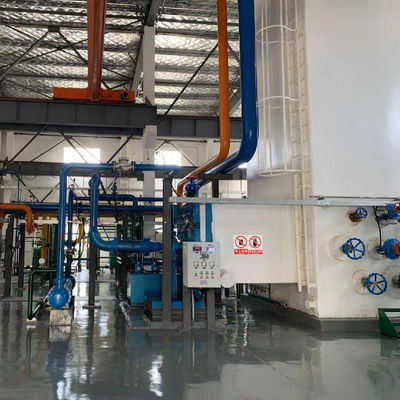

Oxygen Production Cryogenic Air Separation Plant Liquid And Gas Nitrogen Generator 20MPa

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Cryogenic Air Separation | Oxygen Delivery Pressure | 0.1MPa~20MPa Customizable |
---|---|---|---|
Advantage | Stable Output Performance | Purity | 99.6-99.999% |
Technology | Cryogenic Liquid Process | Application | Cutting/Welding/General Industry Fields |
Highlight | Oxygen Production Cryogenic Air Separation Plant,Liquid And Gas Nitrogen Generator,20 MPa Cryogenic Air Separation Plant |
Application Fields
Oxygen, nitrogen, argon and other rare gas produced by air separation unit are widely used in steel, chemical industry,refinery,glass, rubber, electronics, healthcare, food, metals, power generation and other industries.
Air Separation Unit Process Flow Diagram
Technological process flow: 1,Air compression and purification: Air through the air filter to remove dust and mechanical impurities into the air compressor,Compress to desired pressure,then fed into an air cooler to lower the air temperature.Then enter the Air purification system to remove water, carbon dioxide, acetylene and other hydrocarbons in the air. 2,Air separation: The purified air is divided into two ways: one way into the fractionating column, after cooling in the main heat exchanger into the bottom of the column; another way into the fractionating tower, after cooling in the main heat exchanger into the expander after expansion into the middle of the upper tower to participate in the upper tower rectification, to provide cooling capacity for the system. The nitrogen content of the rising gas in the lower tower is increased by contact with the reflux liquid. The required reflux liquid nitrogen comes from the condensing evaporator at the top of the lower tower, where oxygen evaporates and nitrogen condenses. 3,Liquid nitrogen vaporization The liquid nitrogen from the air separation tower is stored in the liquid nitrogen storage tank. The liquid nitrogen in the storage tank is heated into the vaporizer and sent into the product nitrogen pipeline.
Product Name | Cryogenic High Purity Nitrogen Air Separation Unit |
Purity | ≥99.999% |
Productivity | 50Nm3/h~30000Nm3/h |
Pressure | 20MpaG(Adjustable) |
Output | NitrogenGas /Liquid Nitrogen/Nitrogen Gas and Liquid Nitrogen |
Operation Cycle | 24 Months |
